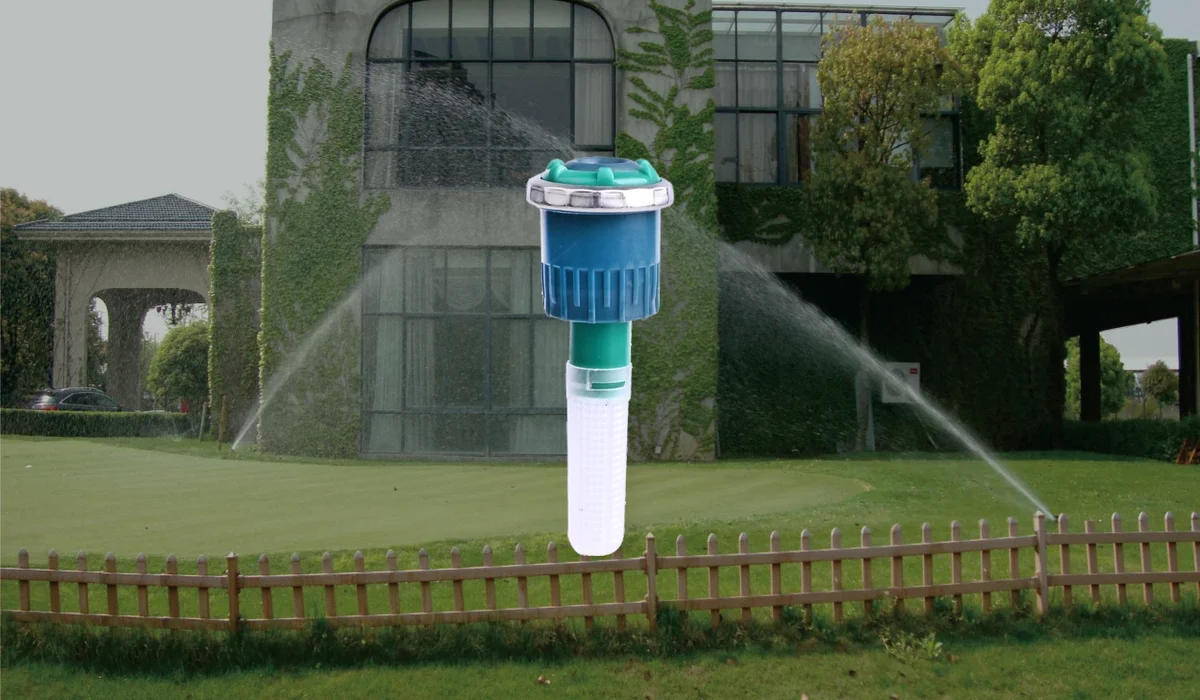

SA Adjustable Rotary Nozzles
The rotary workhorse: dial the arc to anything between 90° and 210°, or open full circle.
Request a Quote
Specifications (per product catalog)
| Model | Radius | Arc | Flow @2.5 bar (m³/h) |
|---|---|---|---|
| SA14-90 | 3.8-5.0 m | 90°-210° | 0.043 (90°) … 0.085 (210°) |
| SA14-360 | 3.8-4.8 m | 360° | 0.161 |
| SA20-90 | 5.0-7.0 m | 90°-210° | 0.050 (90°) … 0.113 (210°) |
| SA20-360 | 4.2-5.5 m | 360° | 0.268 |
| SA26-90 | 6.7-8.5 m | 90°-210° | 0.122 (90°) … 0.229 (210°) |
| SA26-360 | 5.7-8.2 m | 360° | 0.422 |
| SA32-90 | 7.8-10.8 m | 90°-210° | 0.161 (90°) … 0.355 (210°) |
Recommended 1.8-4.0 bar
Flow band 0.06-0.28 m³/h keeps zones balanced while saving water.
Self-filtering
Built-in screen keeps sand out of the stream channels.
POM body
Engineering polymer rated for years of pressure cycling – “durable” per catalog.
Bright color coding
Nozzle tops are color-keyed so crews see radius bands at a glance.
Frequently asked questions
How do I adjust the SA arc?
Rotate the outer ring between the end stops – any span from 90° to 210°, or lock full circle.
Which SA covers 8 m?
SA26-90 reaches 6.7-8.5 m on the quarter-circle; for full circle at 8 m use SA26-360 (5.7-8.2 m).
