Product

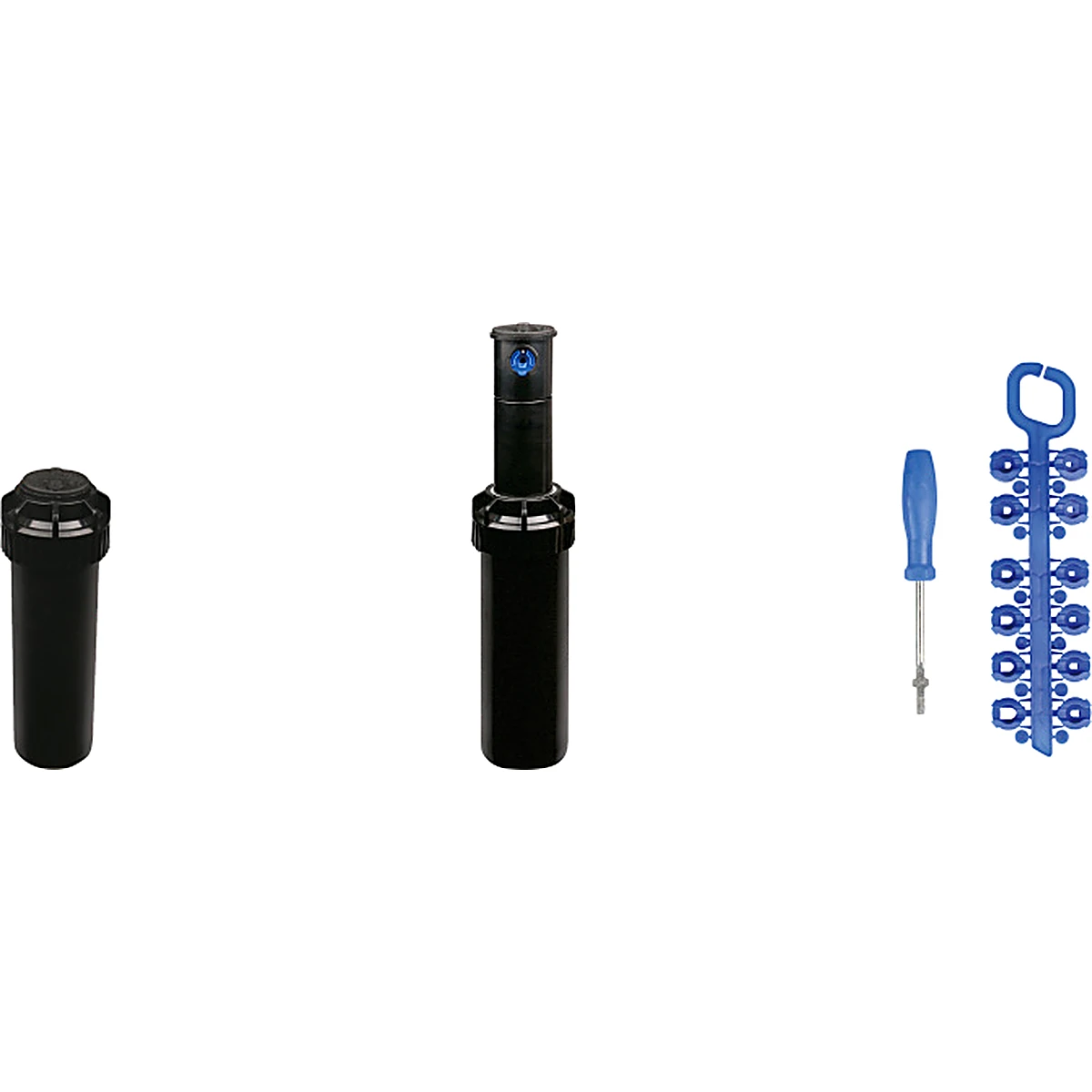

RW-200H Compact Rotor
Gear-drive performance on a 1/2″ lateral – for courtyards, medians and small lawns.
Request a Quote
Specifications (per product catalog)
| Parameter | Value (per catalog) |
|---|---|
| Pop-up height | 12.5 cm |
| Product height | 18.8 cm |
| Inlet | 1/2″ female |
| Radius | 4.8-10.7 m |
| Flow | 0.14-1.05 m³/h (2.28-17.5 l/min) |
| Working pressure | 1.7-4.5 bar (170-450 kPa) |
| Precipitation rate | 10-21 mm/h |
| Arc adjustment | 25°-360° |
| Nozzle | 0.75-4.0 series |
| Body | ABS, water-lubricated gear drive |
| Warranty | 2 years |
No pipe conversion
Runs on 1/2″ laterals – upgrade from spray to rotor without re-piping.
Small-zone uniformity
Nozzle ladder from 0.75 to 4.0 keeps even coverage down to 4.8 m.
Same arc mechanics
25°-360° with the ratchet rack as the full-size rotors.
ABS body
UV-stable engineering polymer with sealed gear train.
Frequently asked questions
When do I choose RW-200H over a spray head?
Where the radius runs 5-10 m and you want lower precipitation and better wind behavior – typical courtyard and median zones.
Does it fit standard swing joints?
Yes, any 1/2″ swing joint such as the JS20.
Market terms (live harvest, Bing, Sep 2026):
EN: compact gear drive sprinkler, 1/2 inch gear drive sprinkler, small rotor sprinkler
DE: kompakter getrieberegner
FR: arroseur rotatif compact
EN: compact gear drive sprinkler, 1/2 inch gear drive sprinkler, small rotor sprinkler
DE: kompakter getrieberegner
FR: arroseur rotatif compact
Planning an irrigation project?
Send us your area, water source and crop or turf type – our engineers will reply with a system proposal.
