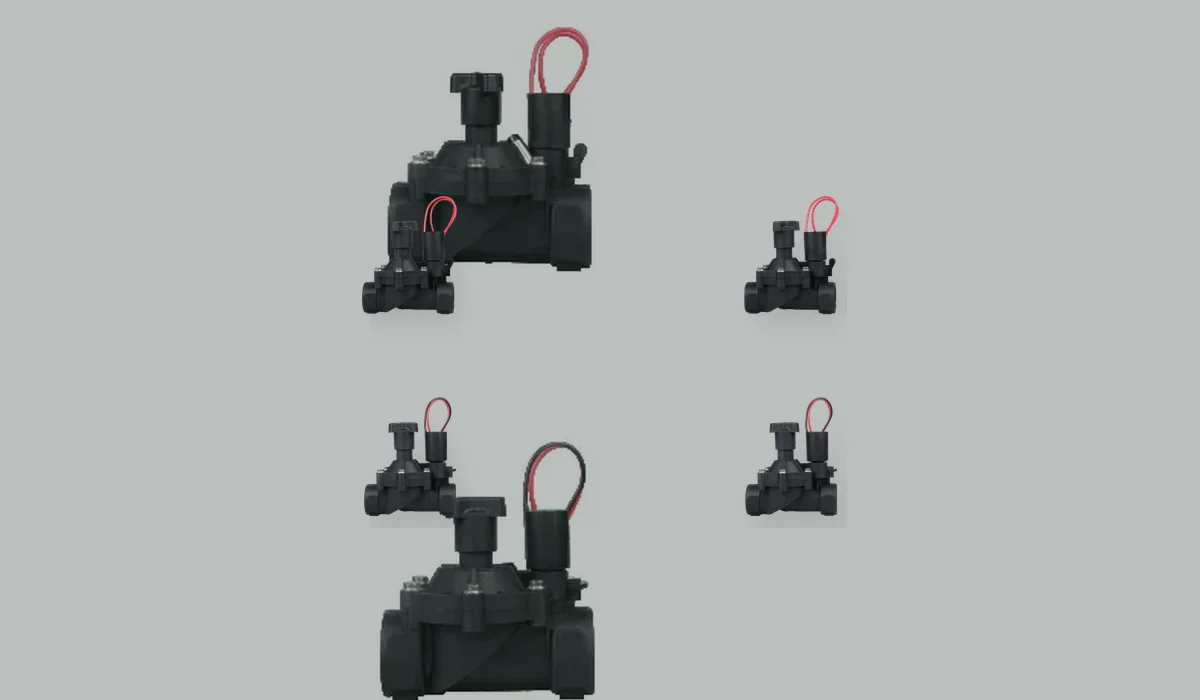

RWV AC / DC Solenoid Valves

One hydraulic platform, two coils: AC for powered controllers, DC latching for battery and solar.

Specifications (per product catalog)

Size	AC model	DC model	Flow	Pressure	Dimensions (L×W×H)
3/4″	RWV-75A	RWV-75D	0.98-8.66 m³/h	0.5-8.8 bar	121×88×130 mm
1″	RWV-100A	RWV-100D	1.14-9.08 m³/h	0.5-8.8 bar	121×88×130 mm
1¼”	RWV-120A	RWV-120D	6.18-20.30 m³/h	0.5-8.8 bar	141×115×140 mm
1½”	RWV-150A	RWV-150D	6.81-22.70 m³/h	0.5-8.8 bar	141×115×140 mm
2″	RWV-200A	RWV-200D	9.08-34.05 m³/h	0.5-8.8 bar	140×135×142 mm
3″	RWV-300A	RWV-300D	34-68 m³/h	0.5-8.8 bar	180×180×243 mm

AC coil

24 V AC ±10%, 50/60 Hz – inrush 0.28 A, holding 0.15 A.

DC latching coil

12 V DC ±10% (9-15 V), <100 ms pulse - pairs with CB01, T01RQ and CJS-4G.

Anti water-hammer

Slow-closing diaphragm prevents surge damage on laterals.

Nylon + glass body

Brass inserts, EPDM diaphragm, media temperature ≤60 °C.

Frequently asked questions

What is a DC latching solenoid valve?

A valve that opens or closes on a short 9-15 V pulse instead of continuous power – that is why battery controllers can run a full season on one 9 V battery.

How do I manually open an RWV valve?

Twist the solenoid a quarter turn for bleed, or use the flow-control stem. No controller needed.

Are the valves repairable?

Yes – the diaphragm assembly lifts out from the top after removing the cover screws.
