Spray Nozzles: N4-N17 & Strips
One nozzle family covers every radius – matched flows so mixed-radius zones stay balanced. Adjustment is by hand: 0° to 360°.
Request a Quote
Specifications (per product catalog)
| Nozzle | Color | Radius | Flow @2.0 bar (m³/h) 90°/180°/270°/360° |
|---|---|---|---|
| N4 | blue | 1.0-1.4 m | 0.06 / 0.11 / 0.17 / 0.19 |
| N6 | orange | 1.5-2.1 m | 0.08 / 0.13 / 0.24 / 0.28 |
| N8 | red | 2.1-2.6 m | 0.17 / 0.33 / 0.42 / 0.55 |
| N10 | green | 2.6-3.2 m | 0.17 / 0.28 / 0.42 / 0.42 |
| N12 | yellow | 3.2-4.0 m | 0.26 / 0.38 / 0.47 / 0.60 |
| N15 | blue | 4.0-4.7 m | 0.26 / 0.38 / 0.47 / 0.60 |
| N17 | black | 4.7-5.5 m | 0.26 / 0.38 / 0.47 / 0.60 |
| NQ strips | black | 1.2×2.0 – 2.7×5.5 m | per pattern, see catalog table |

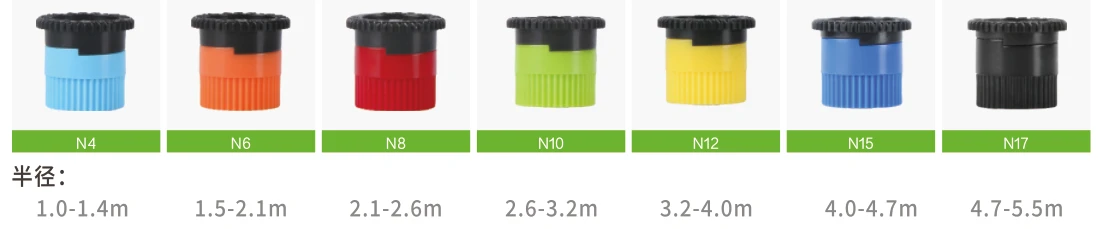

Radius by color
Each nozzle color is one radius band – crews can read the zone from ten meters away.

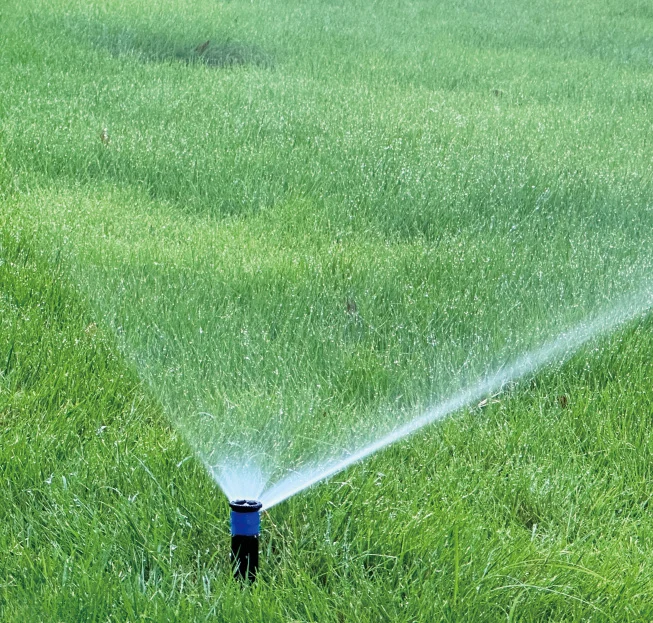

Precision edge spray
Adjustable arc gives sharp boundaries and resists wind drift.
Matched precipitation
Flows are engineered so adjacent radii wet the soil evenly – head-to-head coverage per catalog tables.
Strip patterns
NQ end/center-strip nozzles solve medians and borders where full circles waste water.
Frequently asked questions
How do I adjust the spray arc?
Grip the nozzle stem and rotate: any arc from 0° to 360°. The radius fine-trim is the small screw in the nozzle mouth.
Which nozzle for a 4 m lawn strip between paths?
Two rows of N12 (3.2-4.0 m) with head-to-head spacing give full overlap across a 4 m strip.
Do RainWell nozzles fit other brands of bodies?
The N/SF/SA nozzles use the standard coarse male thread common to most 1/2″ pop-up bodies.
