Category

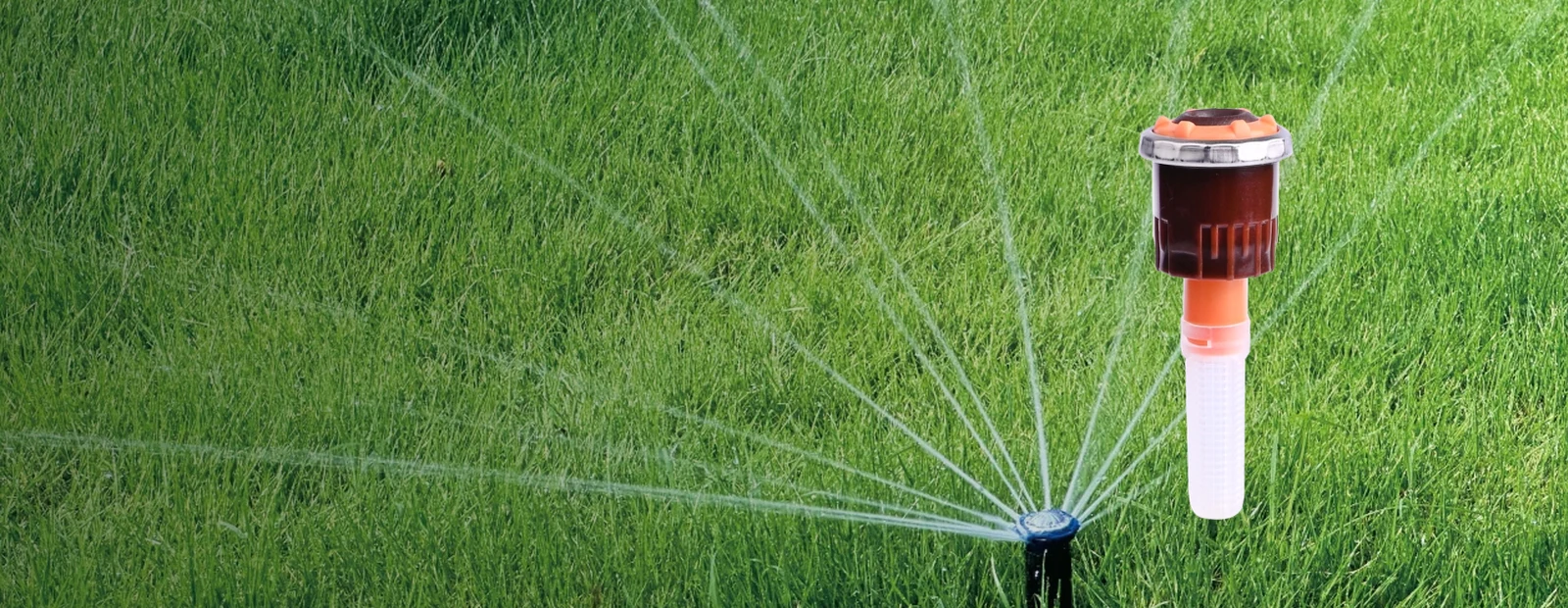

Rotary Nozzles & Bubblers
Slow, wind-resistant rotary streams for standard 1/2″ bodies – plus strip nozzles for medians and bubblers for deep tree watering.
Why rotary? Multi-stream rotaries apply water at roughly one third the precipitation rate of spray heads – longer run time, less runoff, same soil wetting depth. All RainWell rotary nozzles are specified to match N-series spray flows so mixed zones stay balanced.
| Series | Pattern | Radius | Arcs | Pressure |
|---|---|---|---|---|
| SF12 / SF18 / SF24 | Fixed angle rotary | 3 m / 5 m / 7 m | 90° 180° 270° 360° | 1.8-4 bar |
| SA14 / SA20 / SA26 / SA32 | Adjustable rotary | 3.8-5.0 / 5.0-7.0 / 6.7-8.5 / 7.8-10.8 m | 90°-210° or 360° | 1.8-4 bar |
| SQ1215 / SQ1227 | Side strip rotary | 1.5×12 m / 2.7×12 m | fixed strip | 1.8-4.0 bar |
| NP | Bubbler | up to 1.5 m | full circle | 1.4-6.3 bar |
Can I mix rotary nozzles with spray nozzles on one zone?
Only if flows are matched. RainWell rotary nozzles are rated to match N-series spray nozzle output, so an SF/SA nozzle can replace an N nozzle on a shared zone without re-balancing.
Which nozzle for a 3 m wide median?
The SQ1215 side-strip rotary throws a 1.5 × 12 m rectangle from the edge – designed exactly for narrow strips.
What are bubblers used for?
NP bubblers flood the root basin of trees and large shrubs at low throw (max 1.5 m radius), filling the deep root zone without wetting foliage.
Market terms (live harvest, Bing, Sep 2026):
EN: rotary sprinkler nozzles, adjustable rotary nozzle, strip sprinkler nozzle, bubbler nozzle, multi stream rotary nozzle
DE: rotationsdüse beregnung, streifenregner
FR: tuyère rotative arrosage, goutteur arbre
EN: rotary sprinkler nozzles, adjustable rotary nozzle, strip sprinkler nozzle, bubbler nozzle, multi stream rotary nozzle
DE: rotationsdüse beregnung, streifenregner
FR: tuyère rotative arrosage, goutteur arbre
Planning an irrigation project?
Send us your area, water source and crop or turf type – our engineers will reply with a system proposal.
Frequently asked questions
Can rotary nozzles fit existing spray bodies?
Yes — SF/SA/SQ series nozzles retrofit standard spray bodies, so contractors can upgrade radius and reduce runoff without replacing the body.
Wholesale & distributor program
RainWell supplies this line to irrigation distributors, landscape contractors and OEM assemblers worldwide. Mixed trial orders, wholesale price tiers and private label options are available — request the distributor price sheet with your market and expected volumes.
