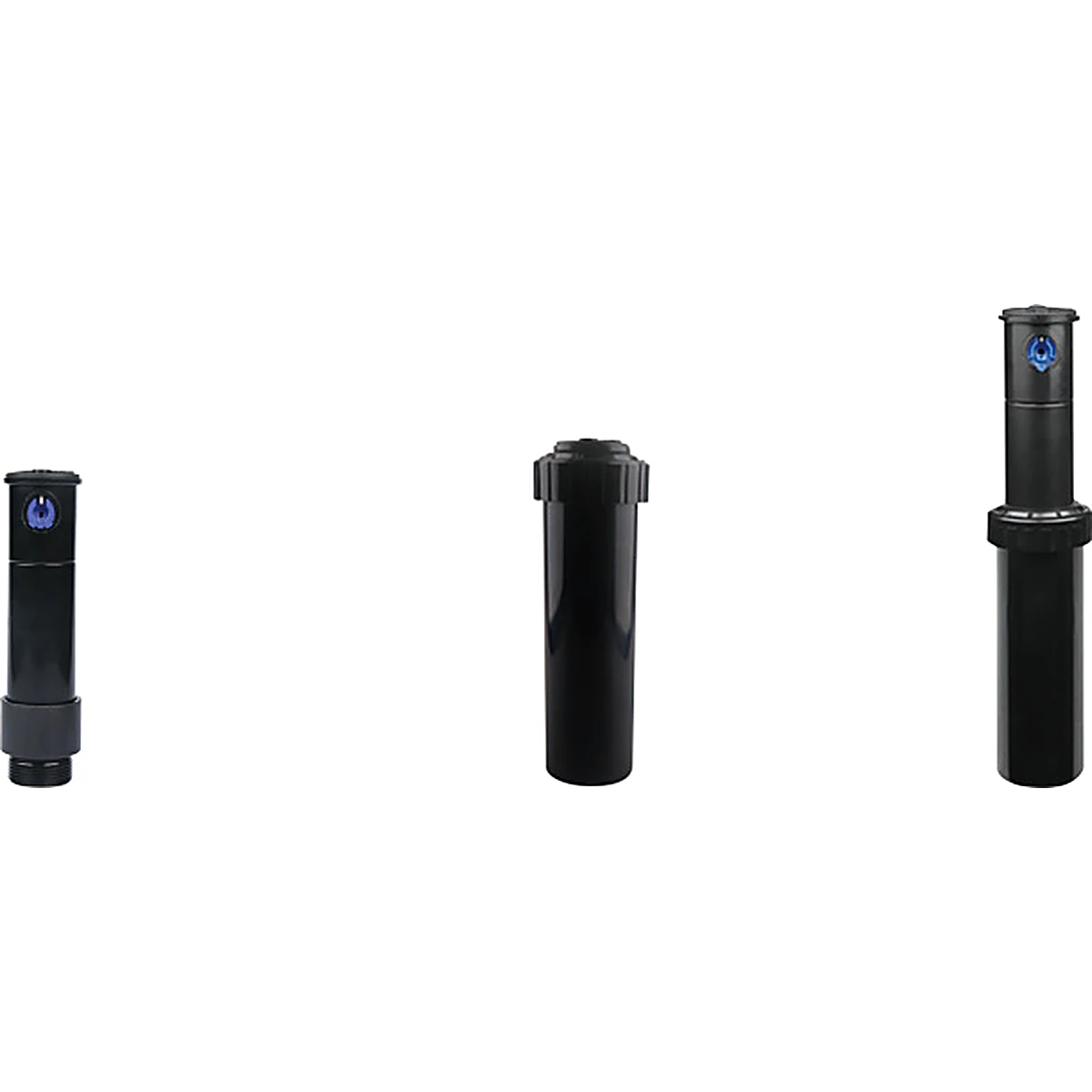

RW-200 Gear Drive Rotor
Flagship rotor for sports turf and public parks – the strongest warranty in the range.
Request a Quote
Specifications (per product catalog)
| Parameter | Value (per catalog) |
|---|---|
| Pop-up height | 12.5 cm |
| Product height | 18.8 cm |
| Inlet | 3/4″ female |
| Radius | 7.22-14.44 m |
| Flow | 0.18-2.30 m³/h (3.0-38.2 l/min) |
| Working pressure | 1.7-4.5 bar (170-450 kPa) |
| Precipitation rate | 6-25 mm/h |
| Arc adjustment | 25°-360° |
| Nozzle elevation | standard 25° / low-angle 13° |
| Nozzle kit | 1.5-8.0 standard; 1.0LA-3.0LA low-angle; pre-installed 2.0# |
| Body | ABS, water-lubricated gear drive |
| Warranty | 3 years |
Longest warranty in the range
3 years, catalog-stated – the rotor we put under playing fields.
Full nozzle ladder
Standard 1.5-8.0 plus 1.0LA-3.0LA low-angle covers radius and wind cases.
Fast maintenance
Ratchet rack + top arc screw mean a crew services the whole field without lifting heads.
Sealed drive
Water-lubricated gears with an integral filter against sand and clippings.
Frequently asked questions
What pressure does the RW-200 need?
1.7-4.5 bar at the nozzle for rated radius; use the PR20 regulator where supply pressure varies.
Is the RW-200 good for sports fields?
Yes – 12.5 cm pop-up clears sports turf, and the 6-25 mm/h precipitation band matches tight irrigation windows.
Which valve pairs with it?
RWV-100A/D or RWV-200A/D depending on zone flow.
