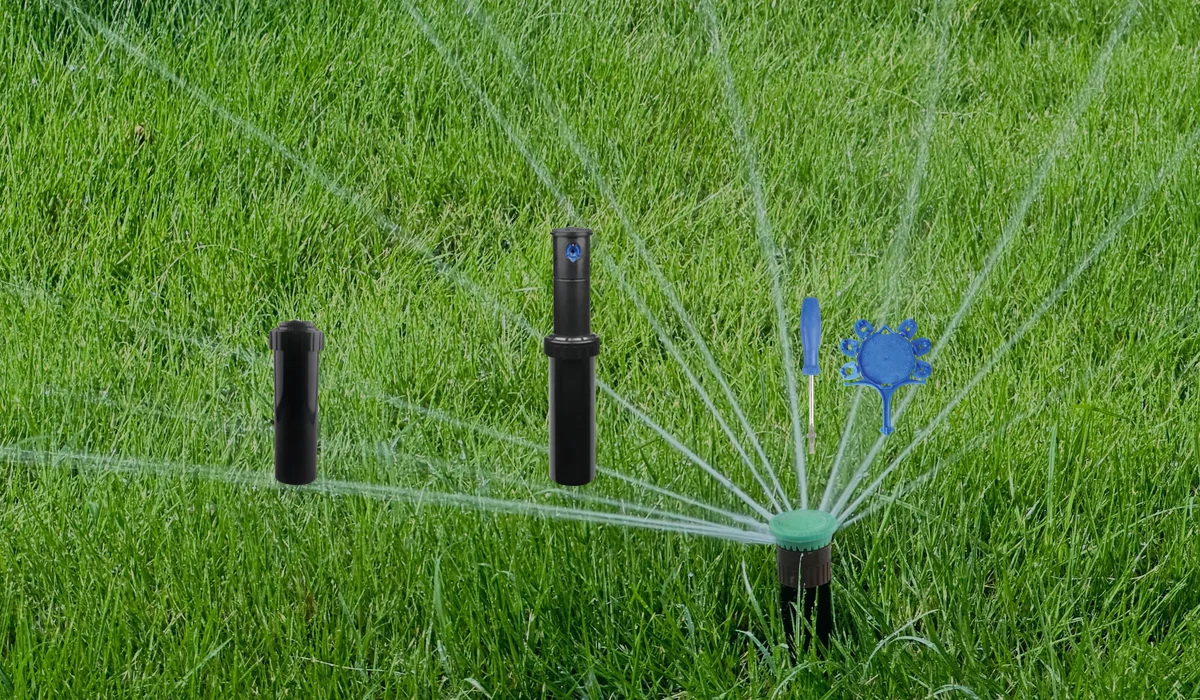

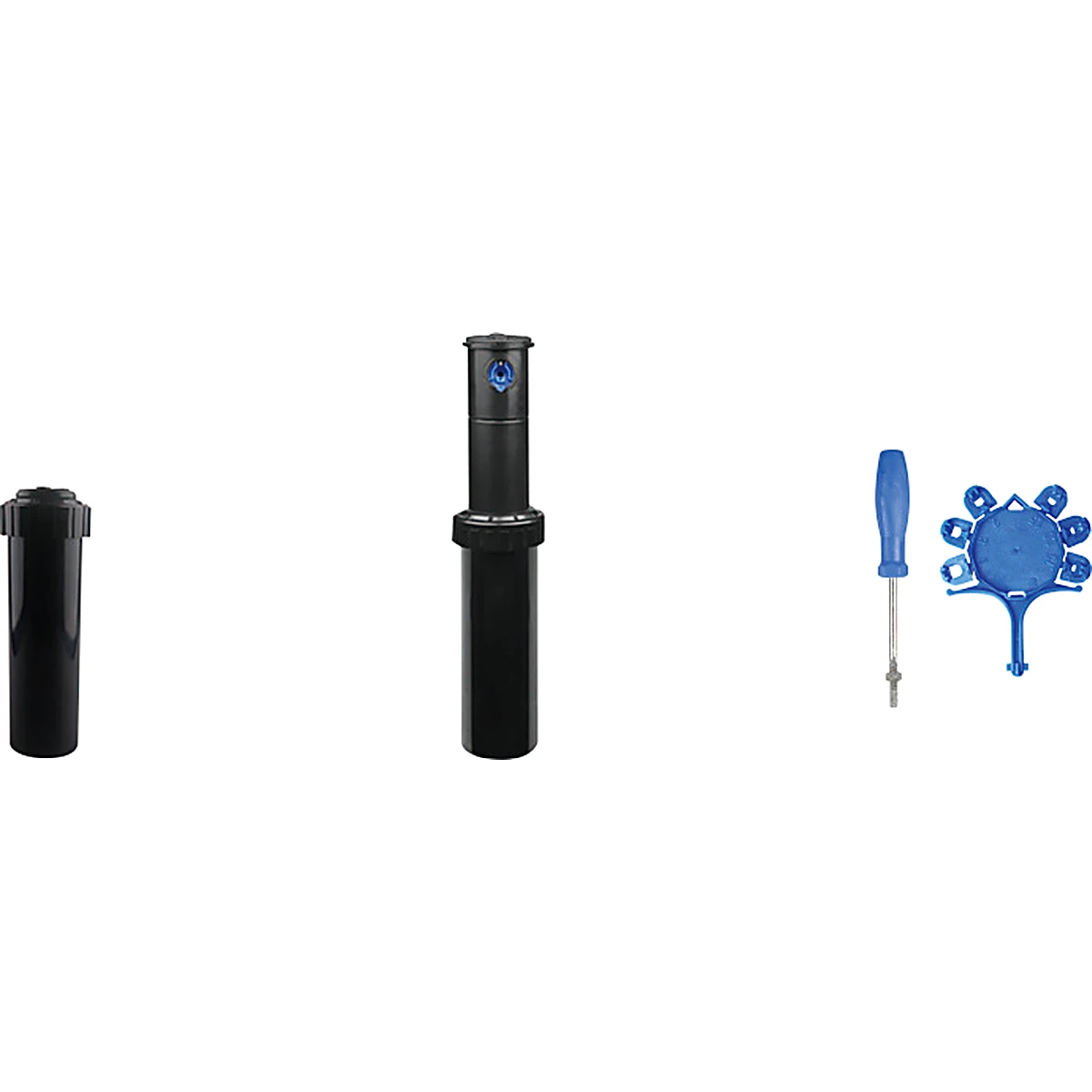

RW-100 Gear Drive Rotor
The large-turf rotor: matched nozzles from 1.5 to 8.0 keep precipitation uniform across the whole radius band.
Request a Quote
Specifications (per product catalog)
| Parameter | Value (per catalog) |
|---|---|
| Pop-up height | 11 cm |
| Product height | 18.5 cm |
| Inlet | 3/4″ female |
| Radius | 7.22-14.44 m |
| Flow | 0.18-2.30 m³/h (3.0-38.2 l/min) |
| Working pressure | 1.7-4.5 bar (170-450 kPa) |
| Precipitation rate | 6-25 mm/h |
| Arc adjustment | 25°-360° |
| Nozzle elevation | standard 25° / low-angle 13° |
| Nozzle kit | 1.5-8.0 standard; 1.0LA-3.0LA low-angle; pre-installed 2.5# |
| Body | PP, water-lubricated gear drive |
| Warranty | 1 year |
Arc in seconds
Ratchet rack sets arc start; top-of-stem screw sets the span – no tools, no digging.
Two elevation options
Standard 25° nozzles for open turf, 13° low-angle for wind-exposed or hedge-adjacent zones.
Oversized filter
High-capacity screen under the nozzle keeps grit out of the gear train.
Tested endurance
Catalog-stated 500+ hours continuous rotation testing.
Frequently asked questions
How far does the RW-100 throw?
7.22 to 14.44 m depending on nozzle and pressure (1.7-4.5 bar).
Can it run from a battery controller?
Yes – pair it with a RWV-100D DC latching valve and the CB01 or CJS-4G controller.
Is the RW-100 the same as RW-200?
Both reach 14.44 m. RW-100 is PP with an 11 cm pop-up and 1-year warranty; RW-200 is ABS, 12.5 cm pop-up, 3-year warranty.
